Product Image

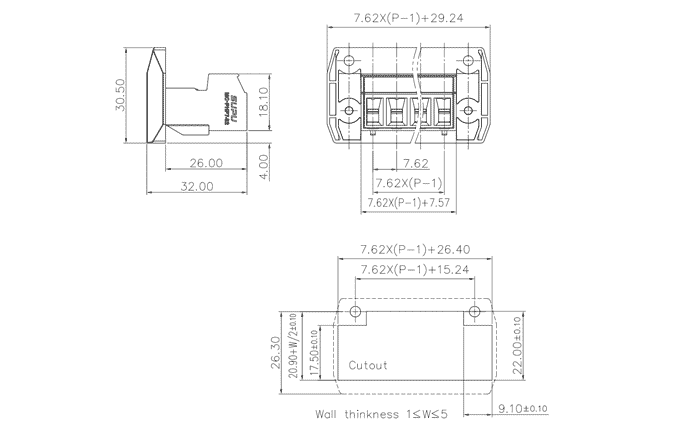

Product Size
Plug-in terminal-Socket
MC-PHP7.62HXXC-F-0001
Pitch: 7.62mm
Rated Voltage：630V
Rated Current: 20A
colour：customizable
Color
Parameters
-
SUPU ID
MC-PHP7.62HXXC-F-0001 -
Pitch
7.62 -
Number of connections
XX -
Connection method
Screw connection -
Protection Level
IP20 -
Operating temperature range
-40~+105℃ -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Color
Green/Black/Blue/Grey/Orange/Red
Technical data
-
IEC Rated Current
20A -
IEC Rated Voltage
630V -
Overvoltage category
Ⅲ Ⅲ Ⅱ
-
Degree of pollution
3 2 2
-
Rated impulse voltage
6.0KV 6.0KV 6.0KV -
UL Rated Current
35A – 10A
-
UL Rated Voltage
300V – 300V
-
Conductor cross section rigid
0.2-4.0mm² -
Conductor cross section flexible
0.2-4.0mm² -
Conductor cross section flexible,with furrule
0.25-2.5mm² -
Locking screw Specification
M3
-
Locking screw torque
0.5N.m
-
Fixed Screw Specification
M3
-
Stripping length
8-9mm -
Use group
B/C/D
Commercial data
-
Order No
MC-PHP7.62HXXC-F-0001
Authentication
