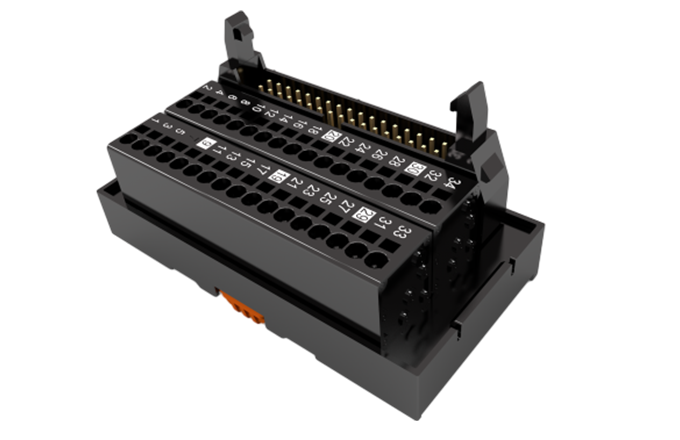

Terminal block
XF2-A34S-NZ-P01
PLC Transfer Module，Flexible，34P，IDC & Terminal Block Connection，No LED，DIN 35 rail mounting（H/V）
Parameters
-
SUPU ID
XF2-A34S-NZ-P01 -
Number of connections
34 -
Protection Level
IP20 -
Operating temperature range
-25~+70℃ -
Mounting Type
DIN 35 rail mounting
Technical data
-
IEC Rated Current
1A -
IEC Rated Voltage
35VDC -
Overvoltage category
Ⅱ
-
Degree of pollution
2
-
Stripping length
8-10mm -
Cable cross section (AWG)
500VAC 1min
-
Insulation Resistance
500MΩ/500VDC
-
Wire Range
24-16AWG
Commercial data
-
Order No
XF2-A34S-NZ-P01 -
Packing unit
PCS -
Minimum order quantity
10 -
Single piece weight
51g
Authentication
