Terminal block

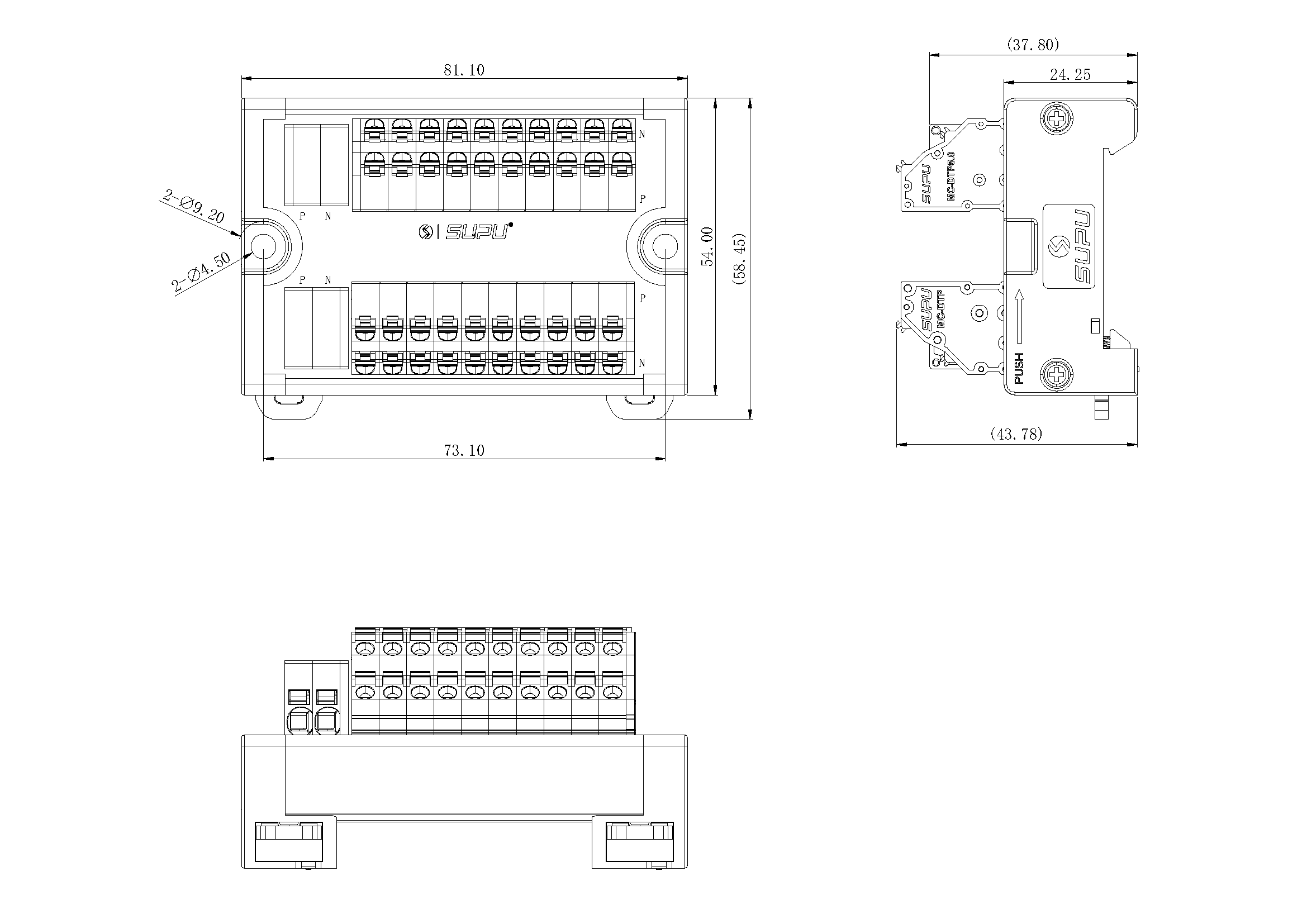

X2-S20P-ND
50mm ordinary base, MC-TC cage spring terminal input, MC-DTP/TP terminal 20 outputs, no status indicator power module
Parameters
-
SUPU ID
X2-S20P-ND -
Number of connections
20 -
Protection Level
IP20 -
Operating temperature range
-20℃-+70℃ -
Mounting Type
35mm DIN/screw mounting
Technical data
-
Overvoltage category
Ⅱ
-
Degree of pollution
2
-
Stripping length
9-10mm -
Cable cross section (AWG)
500VAC/1min
-
Insulation Resistance
500MΩ
-
Wire Range
28-16AWG
-
Coil Current
/
-
Load Current
1A
-
Coil Voltage
/
Commercial data
-
Order No
X2-S20P-ND -
Packing unit
PCS -
Minimum order quantity
5
Authentication
