Screw terminal
TU95-2-PE
Connection method:Screw connection,IEC Rated current:/,IEC Rated Voltage:1000V,Number of connections:2,Number of levels：1,Rated cross section:2-4/0AWG
Parameters
-
SUPU ID
TU95-2-PE -

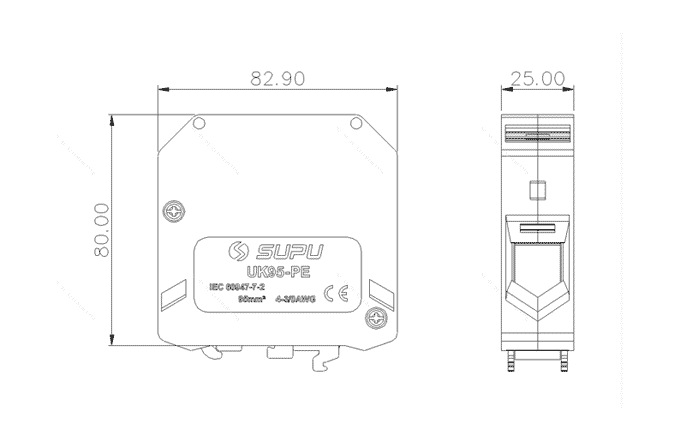

Width
25mm -
Number of levels
1 -
Number of connections
2 -
Connection method
Screw connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
-
Product type
Ground terminal
Technical data
-
IEC Rated Current
/ -
IEC Rated Voltage
1000V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
8kV -
UL Rated Current
/
-
UL Rated Voltage
600V
-
Conductor cross section rigid
25-95mm² -
Conductor cross section flexible
35-95mm² -
Conductor cross section flexible,with furrule
25-95mm² -
Locking screw Specification
M8(hexagonal)
-
Locking screw torque
15-18N.m
-
Fixed Screw Specification
/
-
固定螺钉扭矩
/
-
Stripping length
33mm -
Use group
B/C
-
Rated cross section
2-4/0AWG
-
UL Rated Current
/
-
UL Rated Current
600V
Commercial data
-
Order No
TU95-2-PE
Authentication
