Screw terminal
TU2.5-4-GY
Connection method:Screw connection,IEC Rated current:24A,IEC Rated Voltage:1000V,Number of connections:4,Number of levels：1,Rated cross section:26-12AWG
Parameters
-
SUPU ID
TU2.5-4-GY -

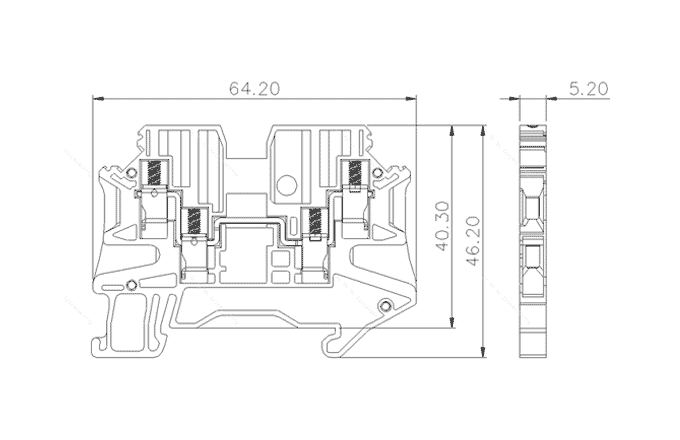

Width
5.2mm -
Number of levels
1 -
Number of connections
4 -
Connection method
Screw connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
-
Product type
Terminal block of side-entry
Technical data
-
IEC Rated Current
24A -
IEC Rated Voltage
1000V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
8kV -
UL Rated Current
20/20/5A
-
UL Rated Voltage
300/300/600V
-
Conductor cross section rigid
0.2-4mm² -
Conductor cross section flexible
0.2-2.5mm² -
Conductor cross section flexible,with furrule
0.2-2.5mm² -
Locking screw Specification
M2.5
-
Locking screw torque
0.4N.m
-
Fixed Screw Specification
/
-
固定螺钉扭矩
/
-
Stripping length
9-11mm -
Use group
B/C/D
-
Rated cross section
26-12AWG
-
UL Rated Current
20/20/5A
-
UL Rated Current
300/300/600V
Commercial data
-
Order No
TU2.5-4-GY
