Push-in spring terminal
TPU35-6-2.5-11-GY-A
Connection method:Push-in connection,IEC Rated Current:105A,IEC Rated Voltage:1000V,Number of connections:11,Number of levels：1,Cross section:16~1/0AWG
Parameters
-
SUPU ID
TPU35-6-2.5-11-GY-A -

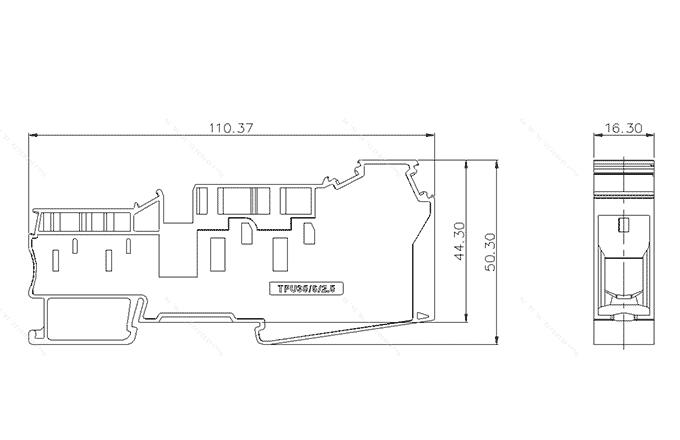

Width
16.3mm -
Number of levels
1 -
Number of connections
11 -
Connection method
Push-in connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
105A -
IEC Rated Voltage
1000V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
8KV -
UL Rated Current
102A
-
UL Rated Voltage
600V
-
Conductor cross section rigid
1.5-50mm² -
Conductor cross section flexible
1.5-50mm² -
Conductor cross section flexible,with furrule
1.5-35mm² -
Stripping length
18mm -
Use group
B/C
-
Rated cross section
16~1/0AWG
Commercial data
-
Order No
TPU35/6/2.5-11-GY
Authentication
