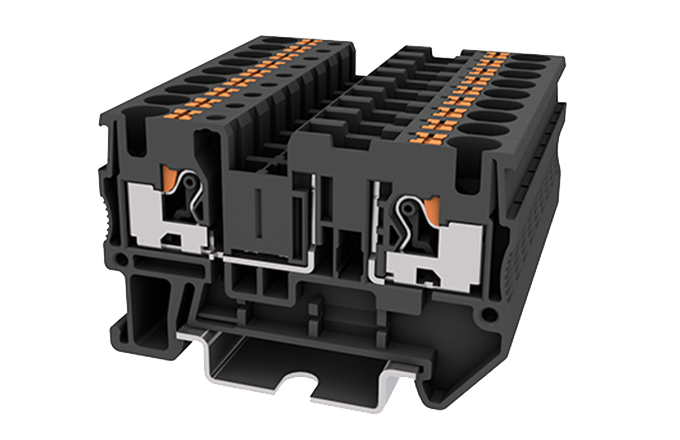

Product Image

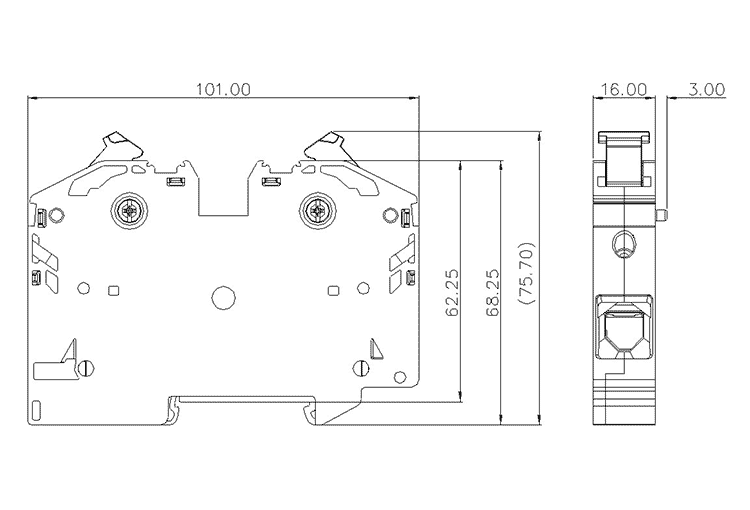

Product Size
Push-in spring terminal
TPH35-2-GY
Connection method:Push in connection,Number of connections:2,Number of levels：1
Parameters
-
SUPU ID
TPH35-2-GY -
Width
16mm -
Number of levels
1 -
Number of connections
2 -
Connection method
Push-in connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
125A -
IEC Rated Voltage
1000V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
8KV -
UL Rated Current
115A/115A/-
-
UL Rated Voltage
1000V/1000V/-
-
Conductor cross section rigid
2.5-35mm² -
Conductor cross section flexible
2.5-35mm² -
Conductor cross section flexible,with furrule
2.5-35mm² -
Stripping length
25mm -
Use group
B/C/D
-
Rated cross section
14-2AWG
Commercial data
-
Order No
TPH35-2-GY
Authentication
