Push-in spring terminal
TPD4-2-GY
Connection method:Push-in connection,IEC Rated Current:28A,IEC Rated Voltage:500V,Number of connections:4,Number of levels：2,Cross section:24-10AWG
Parameters
-
SUPU ID
TPD4-2-GY -

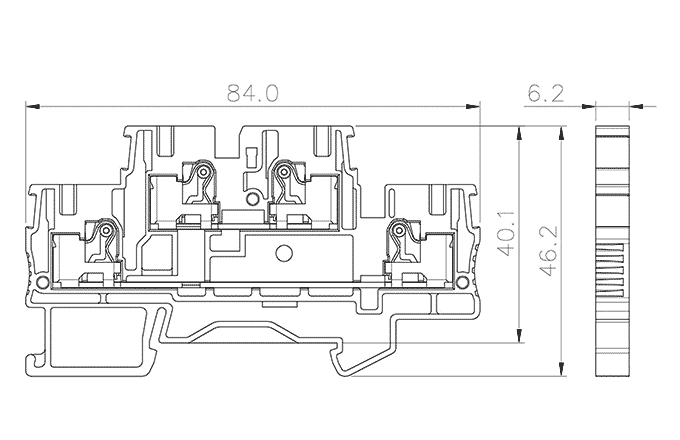

Width
6.2mm -
Number of levels
2 -
Number of connections
4 -
Connection method
Push-in connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
28A -
IEC Rated Voltage
500V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
6KV -
UL Rated Current
28A
-
UL Rated Voltage
600V
-
Conductor cross section rigid
0.2-6mm² -
Conductor cross section flexible
0.2-4mm² -
Conductor cross section flexible,with furrule
0.2-4mm² -
Stripping length
12mm -
Use group
B/C
-
Rated cross section
24-10AWG
Commercial data
-
Order No
TPD4-2-GY
