Push-in spring terminal
TPD1.5-2-PV
Connection method:Push-in connection,IEC Rated Current:16A,IEC Rated Voltage:500V,Number of connections:4,Number of levels：2,Cross section:26-14AWG
Parameters
-
SUPU ID
TPD1.5-2-PV -

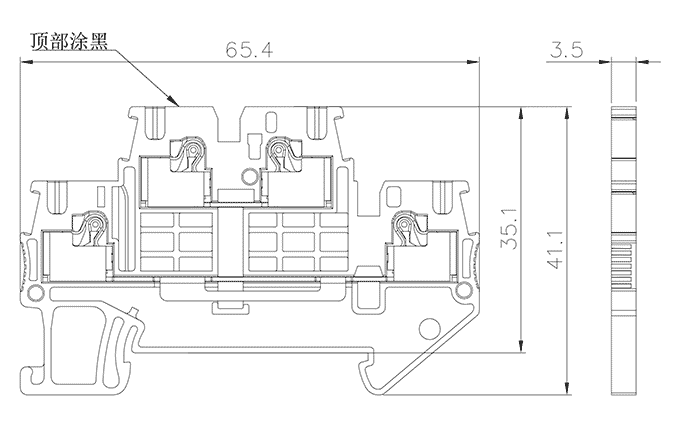

Width
3.5mm -
Number of levels
2 -
Number of connections
4 -
Connection method
Push-in connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
16A -
IEC Rated Voltage
500V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
6KV -
UL Rated Current
15A
-
UL Rated Voltage
300V
-
Conductor cross section rigid
0.2-1.5mm² -
Conductor cross section flexible
0.2-1.0mm² -
Conductor cross section flexible,with furrule
0.2-1.0mm² -
Stripping length
8-10mm -
Use group
B/C
-
Rated cross section
26-14AWG
Commercial data
-
Order No
TPD1.5-2-PV
Authentication
