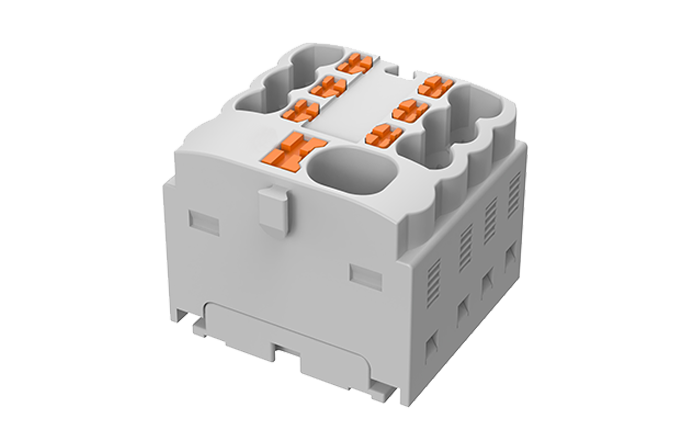

Push-in type power distribution block
TPA6-2.5-7-GY-Input
Connection method:Push-in connection，Rated Current:41A，Rated Voltage:450V，Number of connections：7，Number of levels：1，Cross section:0.5-10mm²，AWG:20-8AWG
Parameters
-
SUPU ID
TPA6/1.5-7-GY -
Number of levels
1 -
Number of connections
7 -
Connection method
Push-in connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
-
Potentials
1
Technical data
-
IEC Rated Current
41A -
IEC Rated Voltage
450V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
6KV -
UL Rated Current
50A
-
UL Rated Voltage
300V
-
Conductor cross section rigid
0.5-10mm² -
Conductor cross section flexible
0.5-6mm² -
Conductor cross section flexible,with furrule
0.5-6mm² -
Stripping length
10-12mm -
Use group
B/C
-
Rated cross section
20-8AWG
Commercial data
-
Order No
TPA6/1.5-7-GY
Authentication
