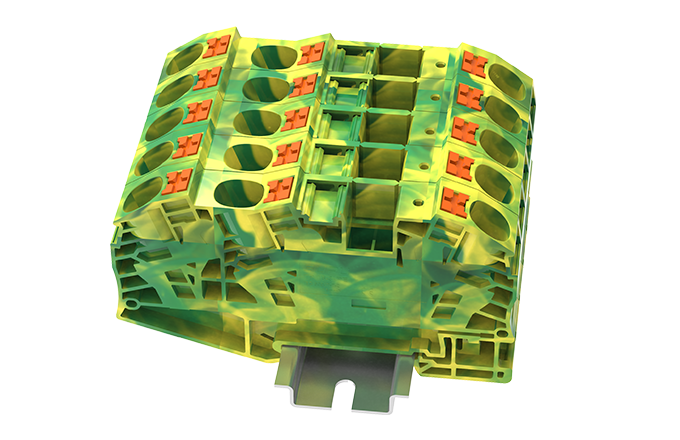

Push-in spring terminal
TP16-3-PE
Connection method:Push-in connection,Number of connections:3,Number of levels：1,Cross section:20-4AWG
Parameters
-
SUPU ID
TP16-3-PE -

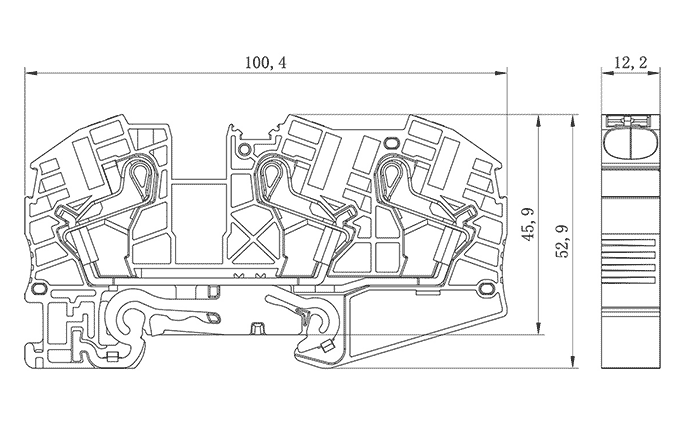

Width
12.2mm -
Number of levels
1 -
Number of connections
3 -
Connection method
Push-in connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
/ -
IEC Rated Voltage
/ -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
8KV -
UL Rated Current
/
-
UL Rated Voltage
/
-
Conductor cross section rigid
0.5-25mm² -
Conductor cross section flexible
0.5-16mm² -
Conductor cross section flexible,with furrule
0.5-16mm² -
Stripping length
18mm -
Use group
/
-
Rated cross section
20-4AWG
Commercial data
-
Order No
TP16-3-PE
Authentication
