Product Image

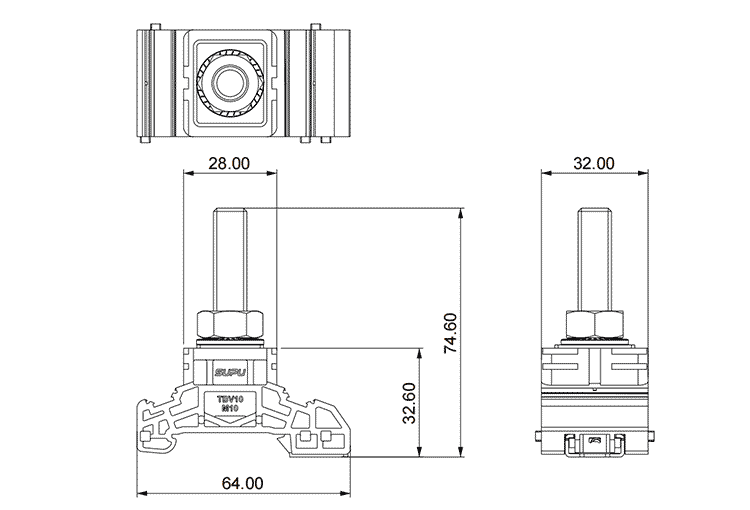

Product Size
Bolt Connection
TBV10-1-GY
Connection method:Bolt connection,IEC Rated Current:269A,IEC Rated Voltage:1000V,Number of connections:1,Number of levels:1
Parameters
-
SUPU ID
TBV10-1-GY -
Width
32mm -
Number of levels
1 -
Number of connections
1 -
Connection method
Bolt connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
269A -
IEC Rated Voltage
1000V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
8KV -
Conductor cross section flexible
6-120mm² -
Locking screw Specification
M10
-
Locking screw torque
10-20N.m
-
Use group
B/C/D
-
Rated cross section
10AWG-250 kcmil
-
UL Rated Current
-/269A/-
-
UL Rated Current
-/1000V/-
Commercial data
-
Order No
TBV10-1-GY
