Product Image

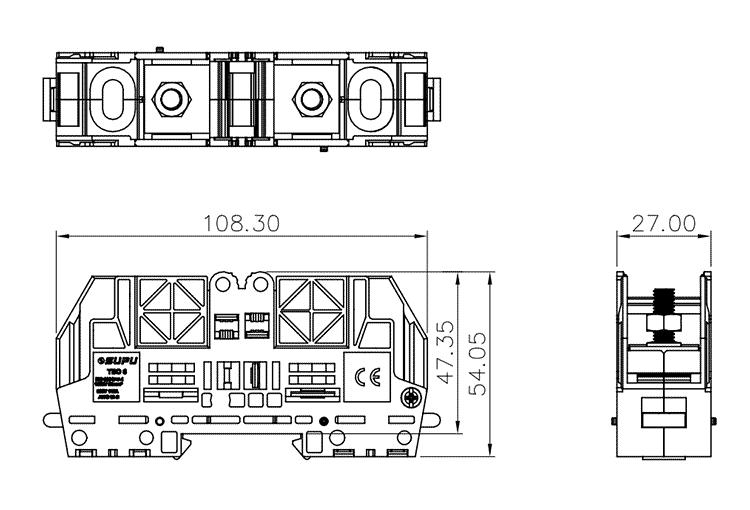

Product Size
Bolt Connection
TBO6-2-GY
Connection method:Bolt connection,IEC Rated Current:125A,IEC Rated Voltage:1000V,Number of connections:2,Number of levels:1
Parameters
-
SUPU ID
TBO6-2-GY -
Width
27mm -
Number of levels
1 -
Number of connections
2 -
Connection method
Bolt connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
125A -
IEC Rated Voltage
1000V -
Overvoltage category
Ⅲ
-
Degree of pollution
3
-
Rated impulse voltage
2.5KV -
Conductor cross section flexible
2.5-35mm² -
Locking screw Specification
M6
-
Locking screw torque
3.2-3.7N.m
-
Use group
B/C/D
-
Rated cross section
12-2AWG
-
UL Rated Current
115A/115A/-
-
UL Rated Current
600V/600V/-
Commercial data
-
Order No
TBO6-2-GY
