Product Image

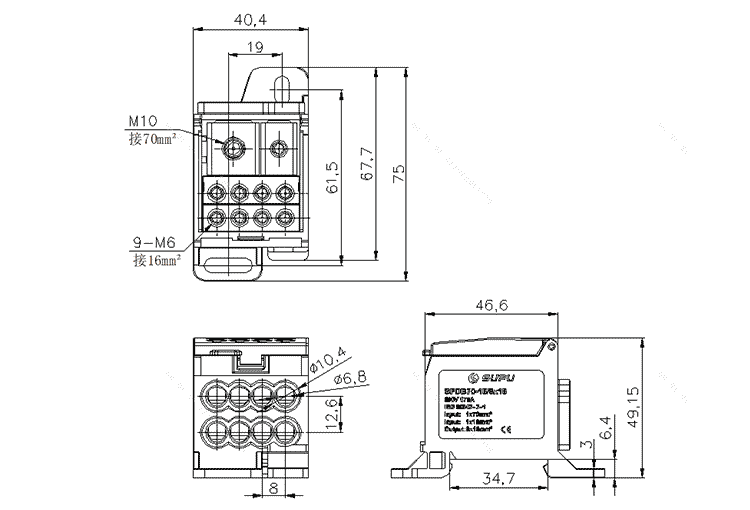

Product Size
High Current Branch Terminal
SPDB70-16-8×16
Connection method:Screw connection,IEC Rated Current:175A,IEC Rated Voltage:690V,Number of connections:10
Parameters
-
SUPU ID
SPDB70-16-8×16 -
Width
40.4mm -
Number of connections
10 -
Connection method
Screw connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
175A -
IEC Rated Voltage
690V -
Degree of pollution
3
-
Rated impulse voltage
2.5KV -
Locking screw Specification
M6/M10
-
Locking screw torque
3N·m/5N·m
-
Stripping length
9-12mm/10-12mm/15-16mm -
Connection capacity AWG
2.5-16mm²/6-16mm²/16-70mm²
-
短路电流（峰值）
30
-
短路电流＞1S
11.8
Commercial data
-
Order No
SPDB70-16-8×16
