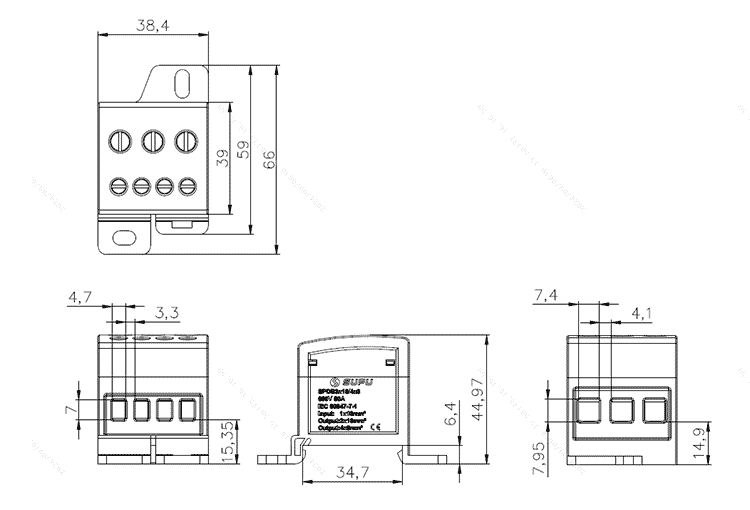

Product Size
High Current Branch Terminal
SPDB16x3-4×6
Connection method:Screw connection,IEC Rated Current:80A,IEC Rated Voltage:690V,Number of connections:7,Number of levels:1
Parameters
-
SUPU ID
SPDB16x3-4×6 -
Width
38.4mm -
Number of connections
7 -
Connection method
Screw connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
80A -
IEC Rated Voltage
690V -
Degree of pollution
3
-
Rated impulse voltage
2.5KV -
Locking screw Specification
M4/M5
-
Locking screw torque
1.2N·m/2.4N·m
-
Stripping length
13-14mm/10-11mm -
Connection capacity AWG
2.5-16mm²/2.5-6mm²
-
短路电流（峰值）
/
-
短路电流＞1S
/
Commercial data
-
Order No
SPDB3x16-4×6
