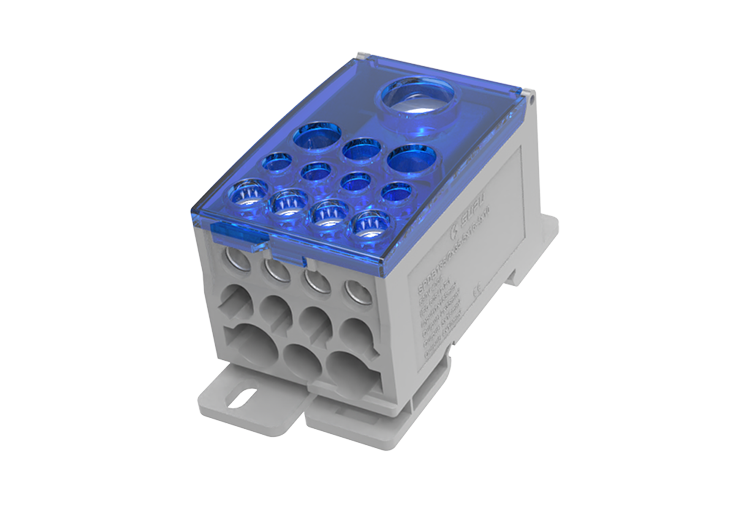

Product Image

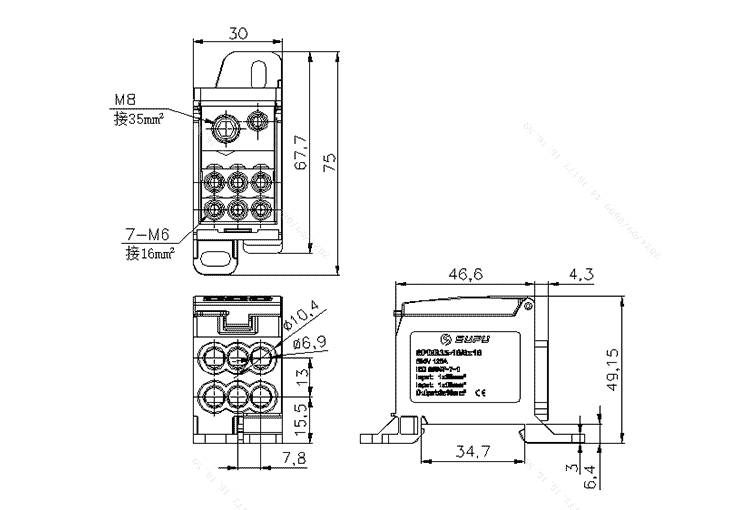

Product Size
High Current Branch Terminal
SPDB35-16-6×16-XX-0001
Connection method:Screw connection,IEC Rated Current:125A,IEC Rated Voltage:690V,Number of connections:8,Number of levels:1
Parameters
-
SUPU ID
SPDB35-16-6×16-XX-0001 -
Width
30mm -
Number of connections
8 -
Connection method
Screw connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
125A -
IEC Rated Voltage
690V -
Degree of pollution
3
-
Rated impulse voltage
2.5KV -
Locking screw Specification
M6/M8
-
Locking screw torque
3N·m/5N·m
-
Stripping length
9-12mm/10-12mm/14-15mm -
Connection capacity AWG
2.5-16mm²/6-16mm²/10-35mm²
-
短路电流（峰值）
30
-
短路电流＞1S
4.2
Commercial data
-
Order No
SPDB35-16-6×16-XX-0001
