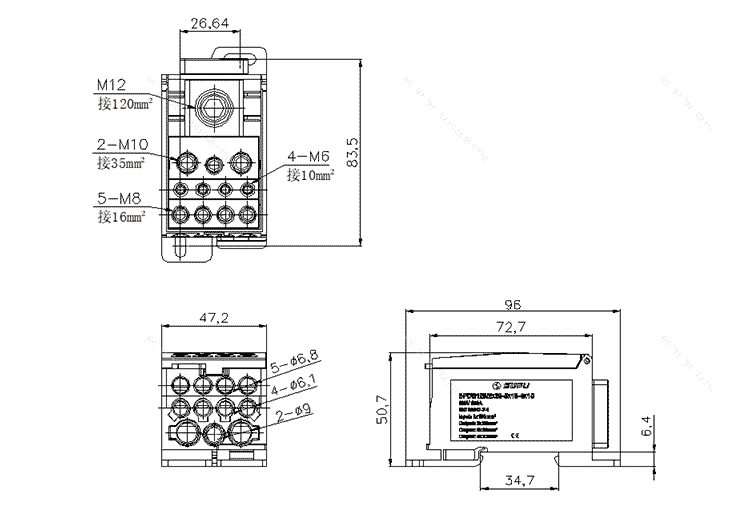

Product Size
High Current Branch Terminal
SPDB120-2×35-5×16-4×10
Connection method:Screw connection,IEC Rated Current:250A,IEC Rated Voltage:690V,Number of connections:12
Parameters
-
SUPU ID
SPDB120-2×35-5×16-4×10 -
Width
47.2mm -
Number of connections
12 -
Connection method
Screw connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Technical data
-
IEC Rated Current
250A -
IEC Rated Voltage
690V -
Degree of pollution
3
-
Rated impulse voltage
2.5KV -
Locking screw Specification
M6/M8/M10/M12
-
Locking screw torque
2.5N·m/3N·m/3.5N·m/19N·m
-
Stripping length
10-12mm/27-29mm -
Connection capacity AWG
2.5-10mm²/2.5-16mm²/2.5-35mm²/2.5-120mm²
-
短路电流（峰值）
51
-
短路电流＞1S
24.5
Commercial data
-
Order No
SPDB120-2×35-5×16-4×10
