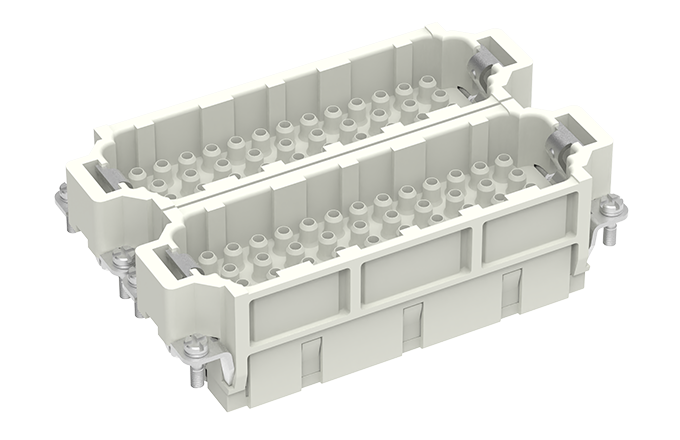

Product Image

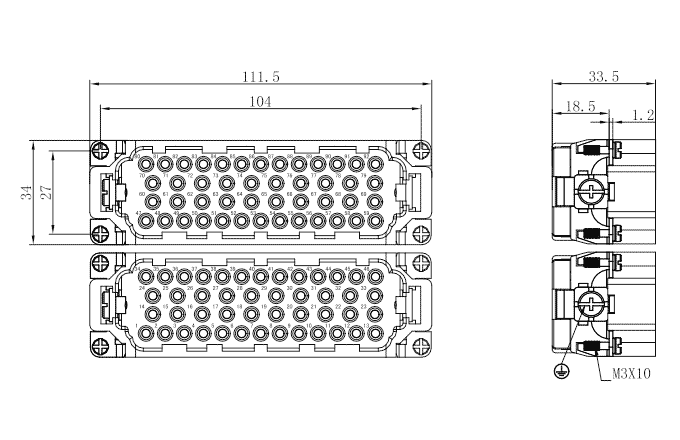

Product Size
Heavy-duty Connector Inserts
SEE-092-MC
SEE Series,92-pole,Ground,Male,Crimp connection
Parameters
-
SUPU ID
SEE-092-MC -
Number of connections
92 -
Operating temperature range
-40℃～+125℃ -
Color
Grey -
Core number
92
-
Category
Male Insert
-
Connection method
Crimp terminal
-
Mechanical endurance
≥500
Technical data
-
IEC Rated Current
16A -
IEC Rated Voltage
500V -
Degree of pollution
3 -
Contact/surface material
Copper Alloy/Hard-gold, Hard-silver Plated
-
Contact carrier material
PC
-
Sealing material
NBR
-
Insulation resistance
≥1010Ω
-
Contact resistance
≤1mΩ
-
Rated pulse voltage
6KV
-
Wire Specification
0.14-4mm²/26-12 AWG
Commercial data
-
Order No
SEE-092-MC -
Packing unit
PCS -
Minimum order quantity
1
