Din rail power supply
SDP2-1AC24-960
Single phase full range, 24V/960W, DC OK remote monitoring, DIN 35 rail mounting
Parameters
-
SUPU ID
SDP2-1AC24-960 -
Protection Level
IP20 -
Operating temperature range
-40~+70℃ -
Terminal block
MC-TC5.0H2P-BK MC-TC5.0H3P-BK-0001-RZ MC-TC/F10.0H4P-BK-0001 -
DC OK
Yes
-

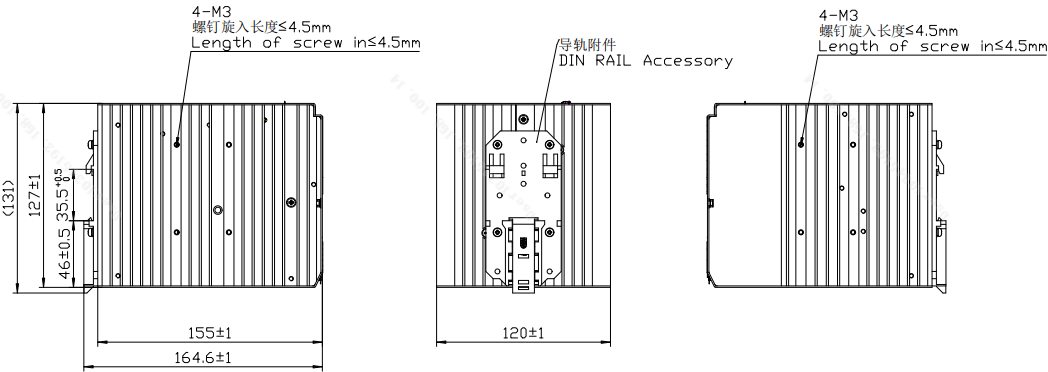

Dimensions(mm)
127 * 155* 120
Technical data
-
IEC Rated Current
11A -
IEC Rated Voltage
AC:264V DC:370V -
Nominal input
AC、DC
-
Efficiency
94%
-
Ripple noise
150mVp-p
-
Input frequency
63HZ
-
Peak load capacity
150%
-
Withstand voltage
I/P-O/P：3000Vac.60S,≤10mA I/P-PE：1500Vac.60S,≤10mA O/P-PE：700VDC.60S,≤10mA
-
Working altitude
≤3000m
Commercial data
-
Order No
SDP2-1AC24-960 -
Packing unit
PCS -
Minimum order quantity
1 -
Single piece weight
2.74KG
Authentication
