Din rail power supply
SDP1-1AC24-240
Single phase full range, 24V/240W, LED indicator, TS 35 rail mounting
Parameters
-
SUPU ID
SDP1-1AC24-240 -
Protection Level
IP20 -
Operating temperature range
-40~+85℃ -
Terminal block
MC-TF5.08H03C-0001 MC-TF5.08H04C-1001 -
DC OK
No
-

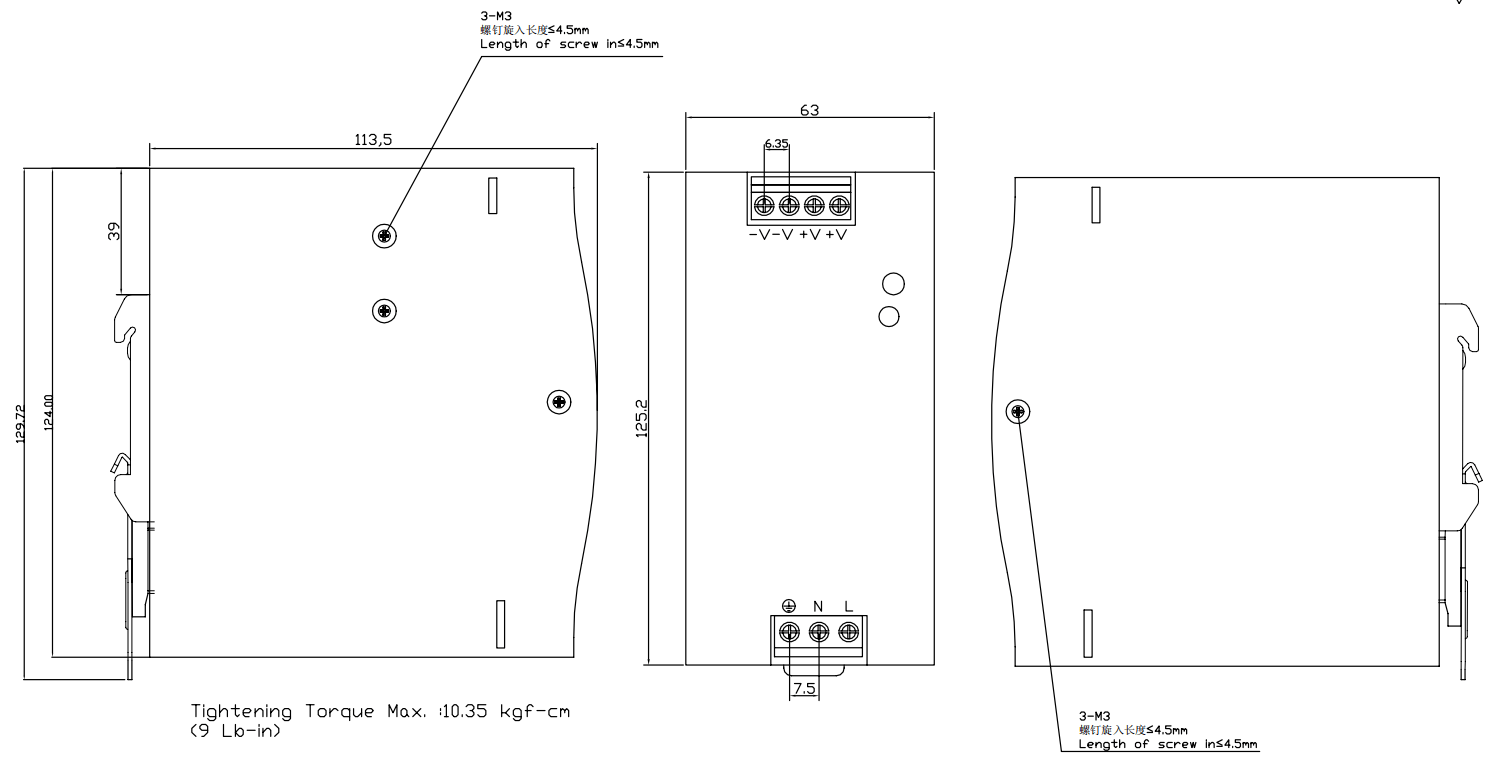

Dimensions(mm)
125.2*63*113.5
Technical data
-
IEC Rated Current
10A -
IEC Rated Voltage
DC：24V -
Nominal input
DC
-
Efficiency
89%
-
Ripple noise
150mVp-p
-
Input frequency
63HZ
-
Peak load capacity
“,I/P-O/P:3KVac
Commercial data
-
Order No
SDP1-1AC24-240 -
Packing unit
PCS -
Minimum order quantity
1 -
Single piece weight
1.08KG
Authentication
