Din rail power supply
SDD-24DC2-20
Dual channel 24V input, support 1+1 and N+1 redundancy system, output current up to 20A
Parameters
-
SUPU ID
SDD-24DC2-20 -
Protection Level
IP20 -
Operating temperature range
-40~+80℃ -
Terminal block
MC-TD5.08H03C-0001 MC-5.08A04C -
DC OK
Yes
-

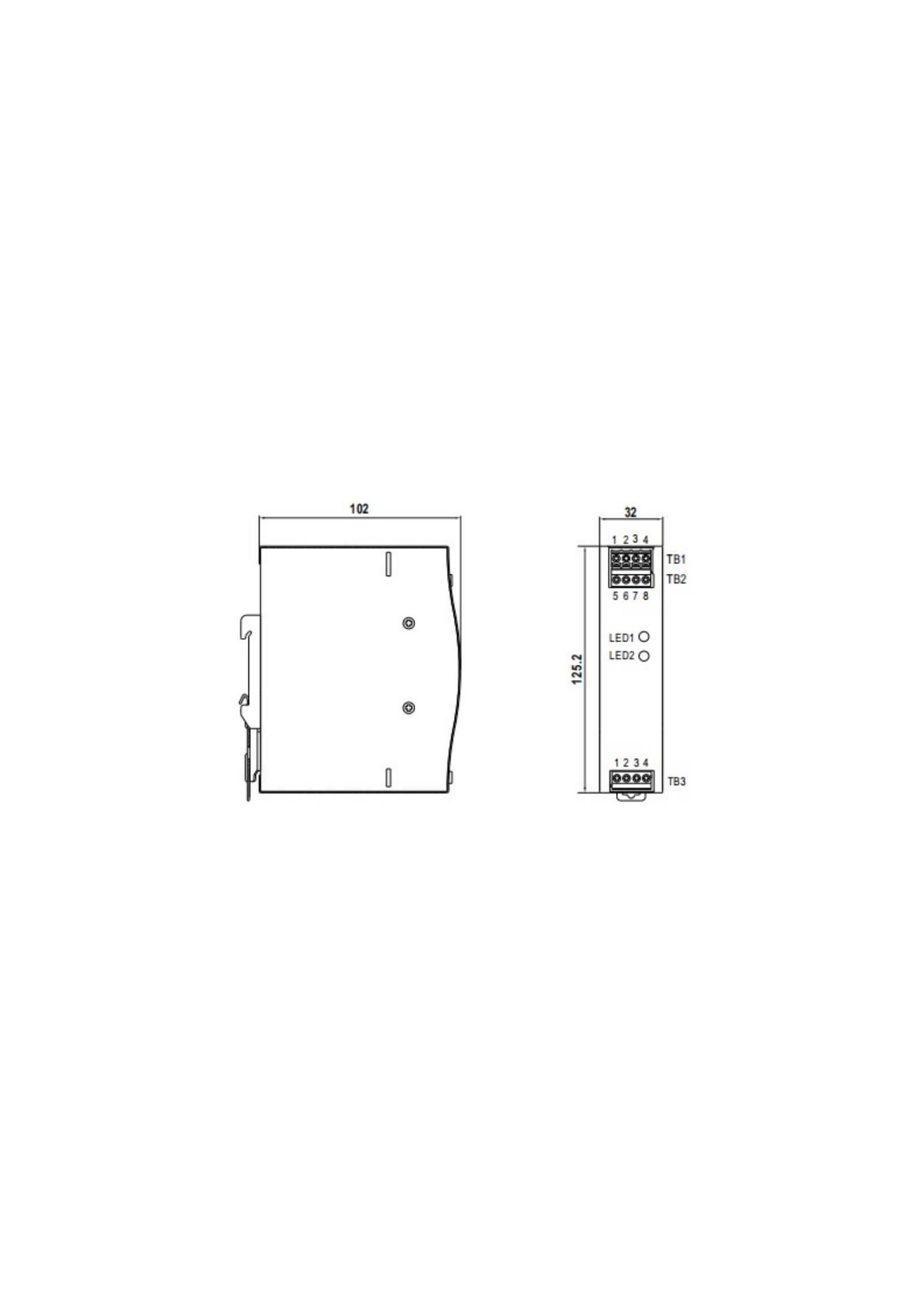

Dimensions(mm)
125.2*32*102
Technical data
-
IEC Rated Current
0-20A continue -
IEC Rated Voltage
DC：24V -
Nominal input
DC
-
Efficiency
98%
-
Ripple noise
“,”
-
Input frequency
“,IP/OP-Housings:0.5KVac;
Commercial data
-
Order No
SDD-24DC2-20 -
Packing unit
PCS -
Minimum order quantity
1 -
Single piece weight
0.35KG
Authentication
