Product Image

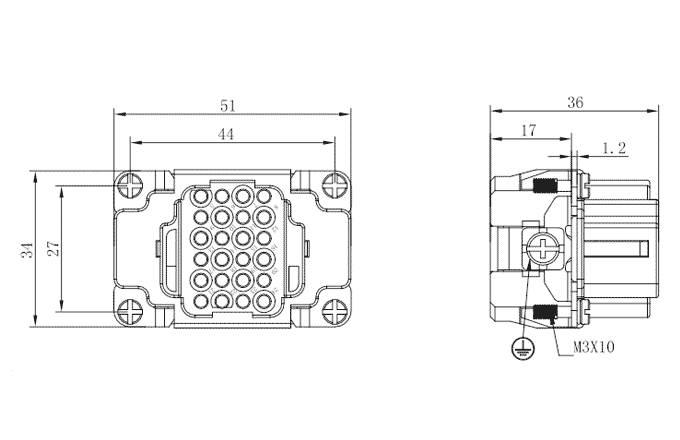

Product Size
Heavy-duty Connector Inserts
SDD-024-FC
SDD Series,24-pole,Ground,Female,Crimp connection
Parameters
-
SUPU ID
SDD-024-FC -
Number of connections
24 -
Operating temperature range
-40℃～+125℃ -
Color
Grey -
Core number
24
-
Category
Female Insert
-
Connection method
Crimp terminal
-
Mechanical endurance
≥500
Technical data
-
IEC Rated Current
10A -
IEC Rated Voltage
250V -
Degree of pollution
3 -
Contact/surface material
Copper Alloy/Hard-gold, Hard-silver Plated
-
Contact carrier material
PC
-
Sealing material
NBR
-
Insulation resistance
≥1010Ω
-
Contact resistance
≤3mΩ
-
Rated pulse voltage
4KV
-
Wire Specification
0.14-2.5mm²/26-14 AWG
Commercial data
-
Order No
SDD-024-FC -
Packing unit
PCS -
Minimum order quantity
1
