Product Image

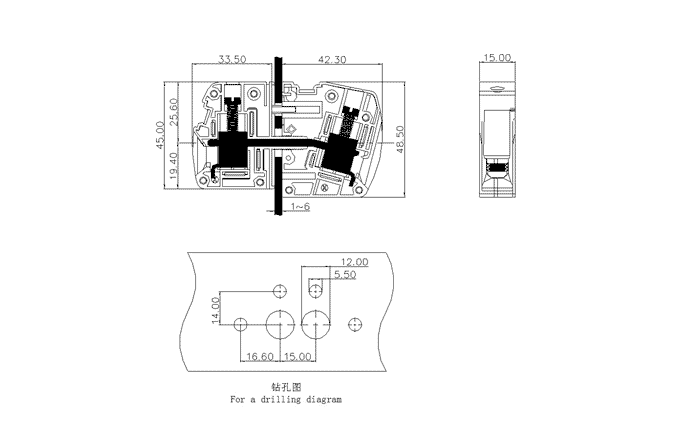

Product Size
Feed-through terminal
SCWH10S
Pitch:10mm
Rated Voltage：500V
Rated Current:76A
colour：Light Gray
Parameters
-
SUPU ID
SCWH10-S -
Number of connections
1 -
Connection method
Screw connection -
Protection Level
IP20 -
Operating temperature range
-40~+105℃ -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
Commercial data
-
Order No
SCWH10-S
Authentication
