Product Image

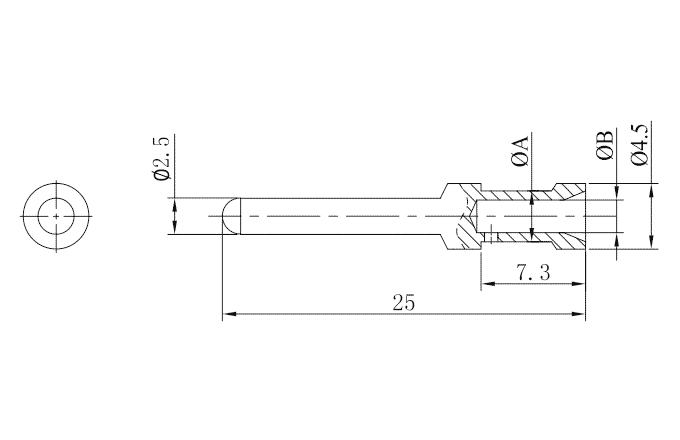

Product Size
Heavy-duty connector pins
SCSM-016-4
16A silver plated,Male,compatible with 4.0mm ²
Parameters
-
SUPU ID
SCSM-016-4 -
Operating temperature range
-40℃～+125℃ -
Category
cold-pressed pin male terminal -
Connection method
Crimp terminal
-
Mechanical endurance
≥500
Technical data
-
IEC Rated Current
16A -
Contact/surface material
Hard-silver Plated
-
Pin Material
Copper Alloy
-
Contact resistance
≤1mΩ
-
Wire Specification
4mm²/12AWG
Commercial data
-
Order No
SCSM-016-4 -
Packing unit
PCS -
Minimum order quantity
1
