Product Image

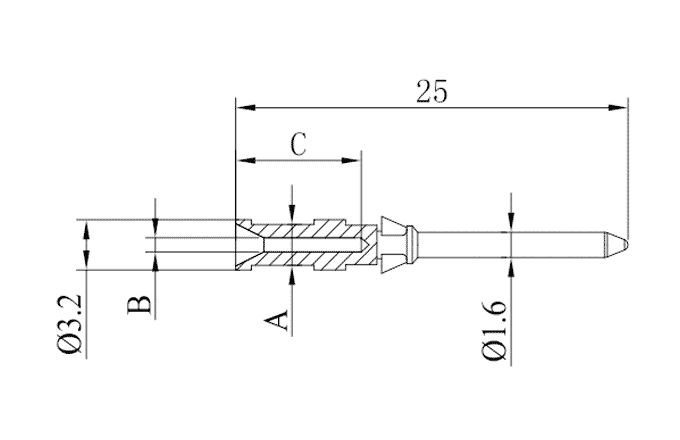

Product Size
Heavy-duty connector pins
SCSM-010-2.5
10A silver plated,Male,compatible with 2.5mm ²
Parameters
-
SUPU ID
SCSM-010-2.5 -
Operating temperature range
-40℃～+125℃ -
Category
cold-pressed pin male terminal -
Connection method
Crimp terminal
-
Mechanical endurance
≥500
Technical data
-
IEC Rated Current
10A -
Contact/surface material
Hard-silver Plated
-
Pin Material
Copper Alloy
-
Contact resistance
≤3mΩ
-
Wire Specification
2.5mm²/14AWG
Commercial data
-
Order No
SCSM-010-2.5 -
Packing unit
PCS -
Minimum order quantity
1
