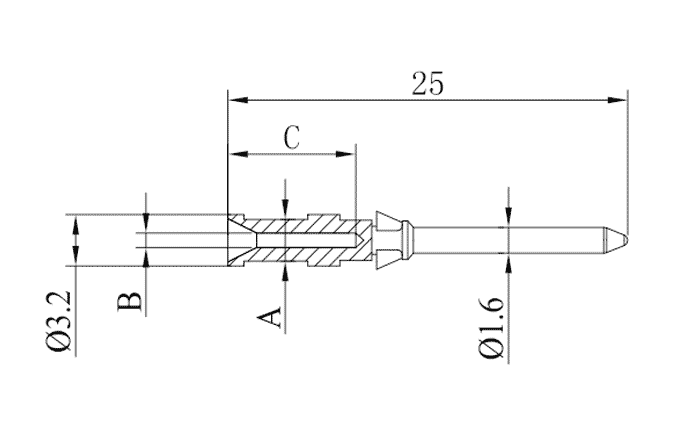

product_size
Heavy-duty connector pins
SCGM-010-0.75
10A gold plated,Male,compatible with 0.75mm ²
Parameters
-
SUPU ID
SCGM-010-0.75 -
Operating temperature range
-40℃～+125℃ -
Category
cold-pressed pin male terminal -
Connection method
Crimp terminal
-
Mechanical endurance
≥500
Technical data
-
IEC Rated Current
10A -
Contact/surface material
Hard-gold Plated
-
Pin Material
Copper Alloy
-
Contact resistance
≤3mΩ
-
Wire Specification
0.75mm²/18AWG
Commercial data
-
Order No
SCGM-010-0.75 -
Packing unit
PCS -
Minimum order quantity
1
