Product Image

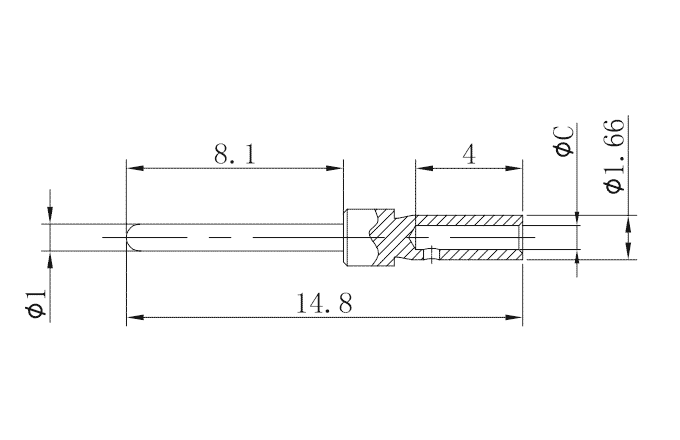

Product Size
Heavy-duty connector pins
SCGM-005-0.52
5A gold plated,Male,compatible with 0.52mm ²
Parameters
-
SUPU ID
SCGM-005-0.52 -
Operating temperature range
-40℃～+125℃ -
Category
cold-pressed pin male terminal -
Connection method
Crimp terminal
-
Mechanical endurance
≥500
Technical data
-
IEC Rated Current
5A -
Contact/surface material
Hard-gold Plated
-
Pin Material
Copper Alloy
-
Contact resistance
≤3mΩ
-
Wire Specification
0.33-0.52mm²/22-20AWG
Commercial data
-
Order No
SCGM-005-0.52 -
Packing unit
PCS -
Minimum order quantity
1
