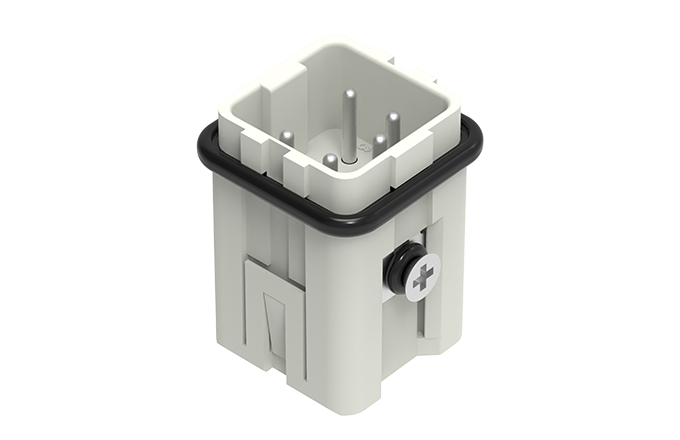

Product Image

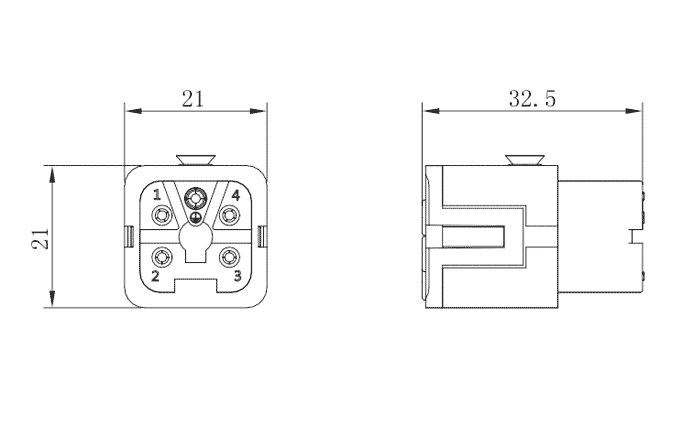

Product Size
Heavy-duty Connector Inserts
SA-004-FS
SA Series,4-pole,Ground,Female,Spring cage connection
Parameters
-
SUPU ID
SA-004-FS -
Number of connections
4 -
Operating temperature range
-40℃～+125℃ -
Color
Grey -
Core number
4
-
Category
Female Insert
-
Connection method
Cage-clamp
-
Mechanical endurance
≥500
Technical data
-
IEC Rated Current
10A -
IEC Rated Voltage
230V -
Degree of pollution
3 -
Contact/surface material
Copper Alloy/Hard-gold, Hard-silver Plated
-
Contact carrier material
PC
-
Sealing material
NBR
-
Insulation resistance
≥1010Ω
-
Contact resistance
≤1mΩ
-
Rated pulse voltage
4KV
-
Wire Specification
0.14-2.5mm²/26-14 AWG
Commercial data
-
Order No
SA-004-FS -
Packing unit
PCS -
Minimum order quantity
1
