Product Image

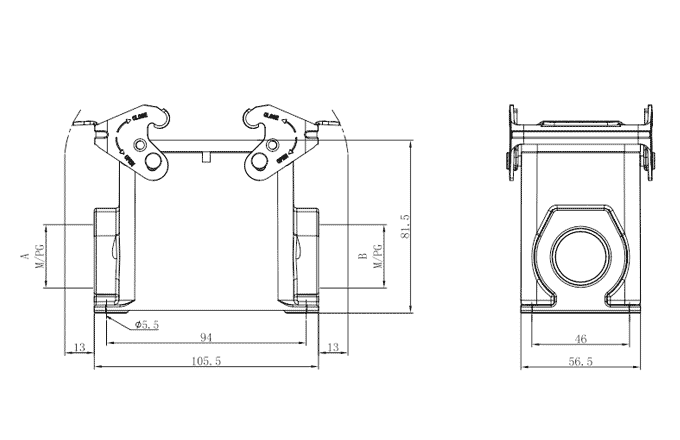

Product Size
Heavy-duty Connector Housing
S32A-SM-2L.M-2M32
S32A Housings,metal,2 levers,surface mounting,2xM32 thread
Parameters
-
SUPU ID
S32A-SM-2L.M-2M32 -
Protection Level
IP65 -
Operating temperature range
-40℃～+125℃ -
Color
Grey -
Thread type
M32
-
Category
Base
-
Mechanical endurance
≥500
Technical data
-
Sealing material
NBR
-
Housing Material
Die-Cast Aluminum
Commercial data
-
Order No
S32A-SM-2L.M-2M32 -
Packing unit
PCS -
Minimum order quantity
1
