Product Image

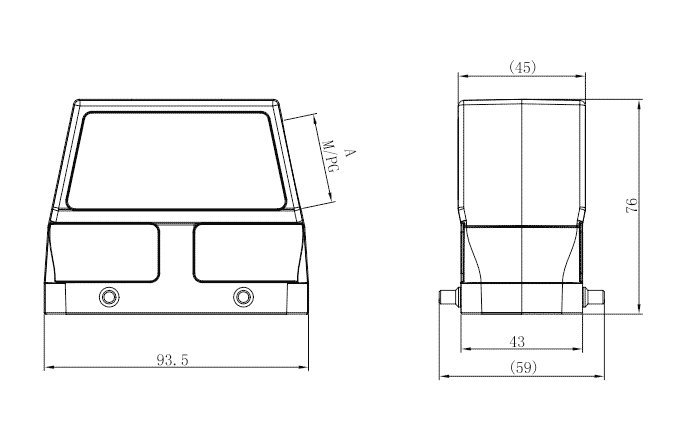

Product Size
Heavy-duty Connector Housing
S16B-SEH-4B-M25
S16B Hoods,side entry,high construction,4 bolts,M25 thread
Parameters
-
SUPU ID
S16B-SEH-4B-M25 -
Protection Level
IP65 -
Operating temperature range
-40℃～+125℃ -
Color
Grey -
Thread type
M25
-
Category
Housing
-
Mechanical endurance
≥500
Technical data
-
Sealing material
NBR
-
Housing Material
Die-Cast Aluminum
Commercial data
-
Order No
S16B-SEH-4B-M25 -
Packing unit
PCS -
Minimum order quantity
1
