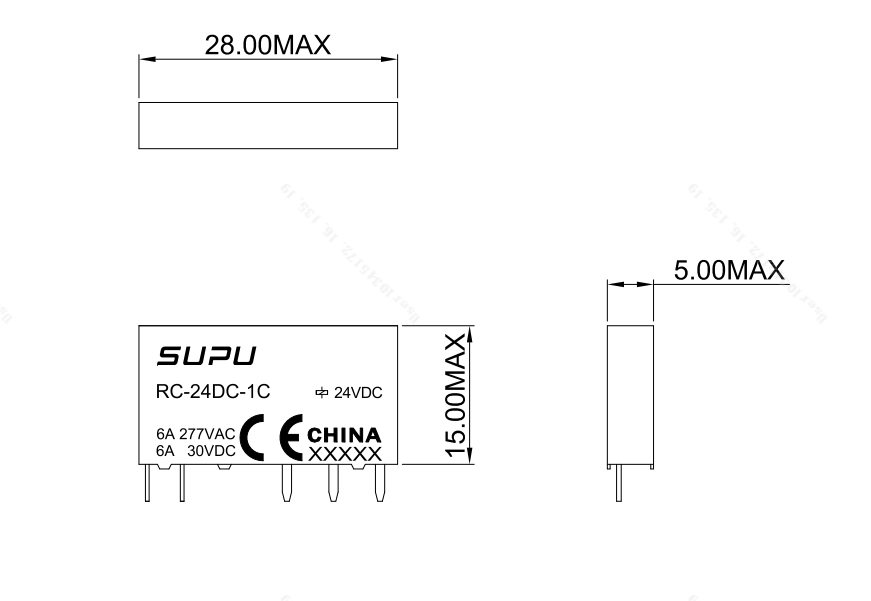

Product Size
Slim intermediate relay
RC-24DC-1C
Slim industrial relay1transfer contact 24VDC/ 6A
Parameters
-
SUPU ID
RC-24DC-1C -
Protection Level
IP40 -
Ambient temperature (operation)
-40~+85℃ -
Ambient temperature (storage)
-40~+85℃
-
Mounting Type
DIN 37 rail mounting
-
Contact material
silver alloy
-
Connection method
Push-in type
-
Contact connection type
1C
Technical data
-
IEC Rated Voltage
24DC -
Dielectric withstand voltage
4000VAC 1min：Coils/ contacts 1000VAC 1min：BetweenContacts
-
Endurance
Mechanical: 10 million times or more Electrical: Normally open type more than 60,000 times (high temperature 85 ℃, 1 s on 9s off) Switching type 30,000 times or more (high temperature 85 ℃, 1 s on 9s off)
-
Operating voltage
≤75% of rated voltage
-
Release Voltage
≥5% of rated voltage
-
Maximum permissible voltage
110% of rated voltage
-
Nominal power consumption
About 170mW
-
Response time
8ms or less
-
Release time
4ms or less
-
Protective circuit
None
-
Status display
visual
-
Maximum switching power
1500VA/180W
-
Rated load capacity
AC250V/6A DC30V/6A
-
Rated load current
6A
-
Insulation resistance
1000MΩ（500VDC）
Commercial data
-
Order No
RC-24DC-1C -
Packing unit
PCS -
Minimum order quantity
50 -
Single piece weight
5g
Authentication
