Product Image

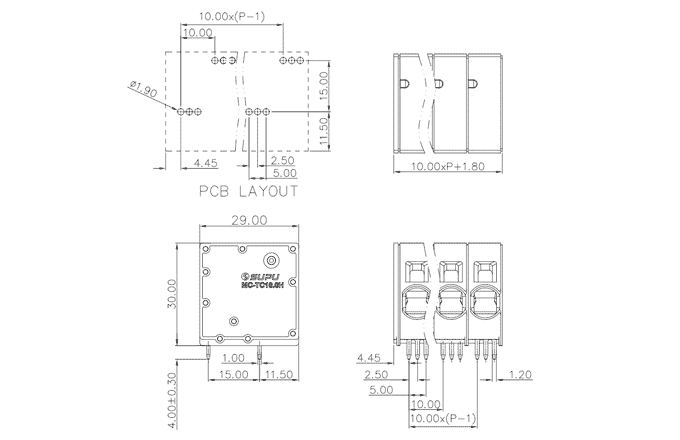

Product Size
Fixed terminal
MC-TC-F10.0HXXP-0001
Pitch:10.0mm
Rated Voltage：1000V
Rated Current:76A
Connection method：Push in connection
colour：customizable
Color
Parameters
-
SUPU ID
MC-TC-F10.0HXXP-0001 -
Pitch
10 -
Number of levels
Single layer -
Number of connections
XX -
Connection method
Push in spring connection -
Protection Level
IP20 -
Operating temperature range
-40~+105℃ -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Color
Green/Black/Blue/Grey/Orange/Red
Technical data
-
IEC Rated Current
76A -
IEC Rated Voltage
1000V -
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
-
Degree of pollution
3 2 2
-
Rated impulse voltage
8.0KV 8.0KV 8.0KV -
UL Rated Current
70A 70A 5A
-
UL Rated Voltage
600V 600V 600V
-
Conductor cross section rigid
0.75-16.0mm² -
Conductor cross section flexible
0.75-16.0mm² -
Conductor cross section flexible,with furrule
0.75-16.0mm² -
Locking screw Specification
–
-
Locking screw torque
–
-
Fixed Screw Specification
–
-
Stripping length
18-20mm
Commercial data
-
Order No
MC-TC-F10.0HXXP-0001
Authentication
