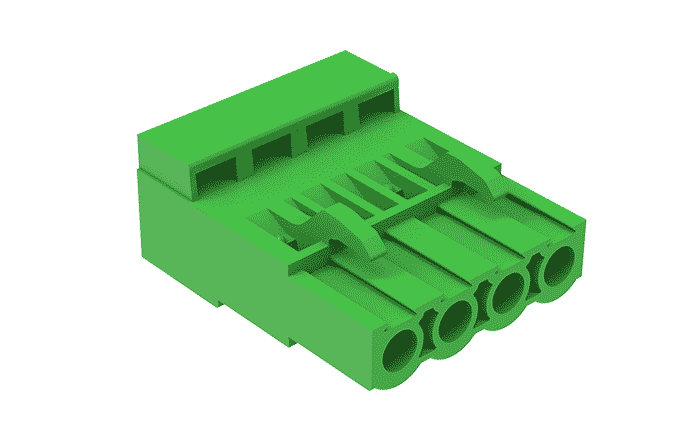

Crimp terminal
MC-RB5.08HXXB-K-100-0001
Pitch:5.08mm
Rated Voltage：320V
Connection method：Cold connection
Color
Parameters
-
SUPU ID
MC-RB5.08H02B-K-100-0001 -
Pitch
5.08 -
Number of levels
Single layer -
Number of connections
XX -
Connection method
Cold Pressure Wiring -
Protection Level
IP20 -
Operating temperature range
-40~+105℃ -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Color
Green
Commercial data
-
Order No
MC-RB5.08H02B-K-100-0001
Authentication
