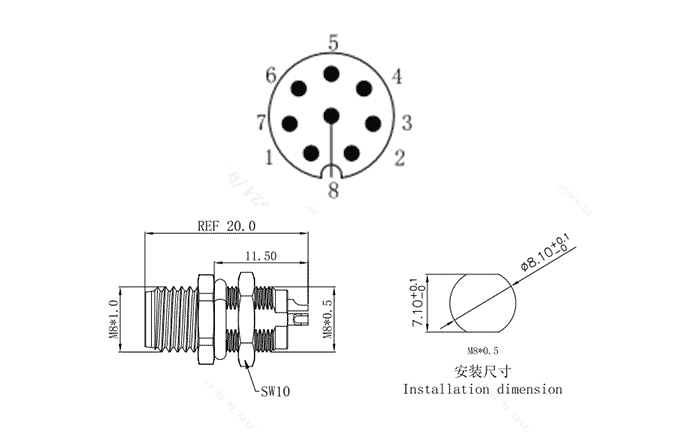

M8 Panel Mounting Connector
M8A08C-MPSFHUA
M12A panel male 8-core welded type,front mounted,M8*0.5
Color
Parameters
-
SUPU ID
M8 -
Number of connections
8 -
Protection Level
IP67 -
Operating temperature range
-40~+85℃ -
Mounting Type
Front Panel Mount -
Color
Black
-
Core number
8
-
Thread type
M8X0.5
-
Category
Male
-
Product type
A
-
Coding
A
-
Connection method
Cup Port
-
Mechanical endurance
100
-
Standards
IEC61076-2-104
Technical data
-
IEC Rated Current
1.5A -
IEC Rated Voltage
30 VAC / 30 VDC -
Degree of pollution
3
-
Insulation Resistance
≥100MΩ
-
Contact resistance
＜10mΩ
-
Contact/surface material
CuSn/Ni/Au
-
Contact carrier material
PA
-
Screw/nut material
CuZn
-
Sealing material
NBR
-
Cable length
/
-
导线材料
/
Commercial data
-
Order No
M8A08C-MPSFHUA -
Packing unit
PCS -
Minimum order quantity
1
