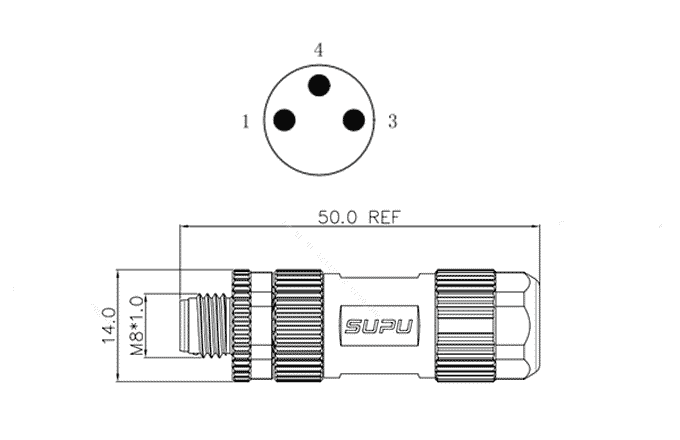

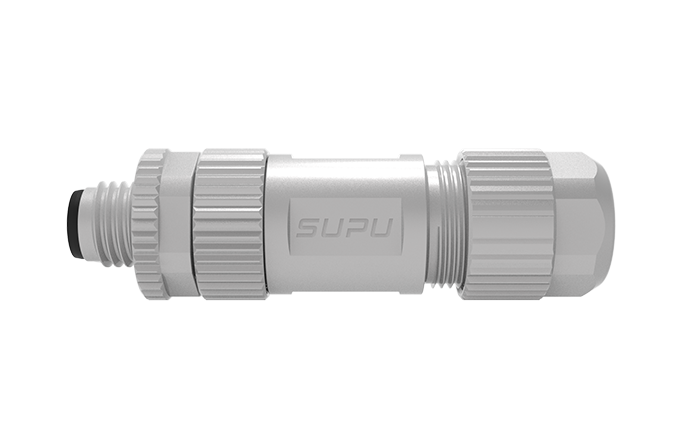

M8 Field-assembly Connector
M8A03Z-MASSTSA
M8 assembly welded type,straight male 4-core ,shielded,the diameter of the adapter wire is 3.5-5.0MM
Parameters
-
SUPU ID
M8 -
Number of connections
3 -
Connection method
Solder Type -
Cable OD.
3.5-5.0mm
-
Protection Level
IP67 -
Operating temperature range
-40~+85℃ -
Mounting Type
Field
-
Thread type
M8X1.0
-
Category
Male
-
Product type
assembly,straight
-
Coding
A
-
Connection method
Solder Type
-
Shielded
YES
-
Mechanical endurance
≥100
-
Standards
IEC61076-2-104
Technical data
-
IEC Rated Current
3A -
IEC Rated Voltage
50 VAC / 60 VDC -
Degree of pollution
3
-
Insulation Resistance
≥100MΩ
-
Contact resistance
＜10mΩ
-
Contact/surface material
CuSn/Ni/Au
-
Contact carrier material
PA
-
Screw/nut material
CuZn
-
Sealing material
NBR
Commercial data
-
Order No
M8A03Z-MASSTSA
