Product Image

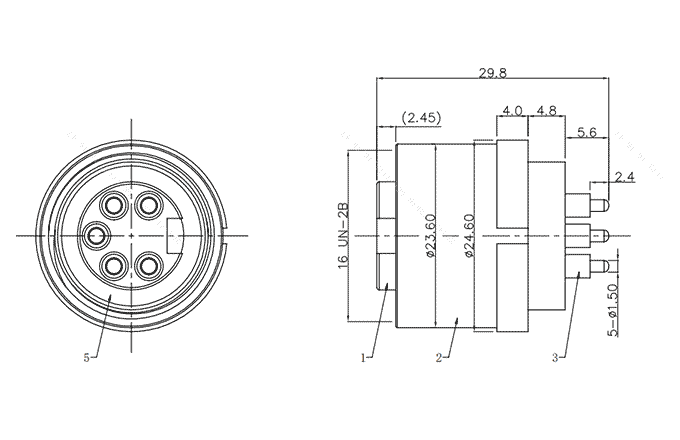

Product Size
Parameters
-
SUPU ID
M7-8U05C-FPBRCU-001 -
Number of connections
5 -
Protection Level
IP67 -
Thread type
M7/8 -
Category
Female
-
Coding
/
-
Connection method
panel mount
-
Mechanical endurance
≥100
-
Standards
/
Technical data
-
IEC Rated Current
300V DC -
IEC Rated Voltage
8A -
Insulation Resistance
≥100MΩ
-
Contact resistance
＜10mΩ
-
Contact/surface material
CuZn/Ni/Au
-
Contact carrier material
PA
-
Screw/nut material
CuZn
-
Sealing material
NBR
Commercial data
-
Order No
M7/8U05C-FPBRCU-001
