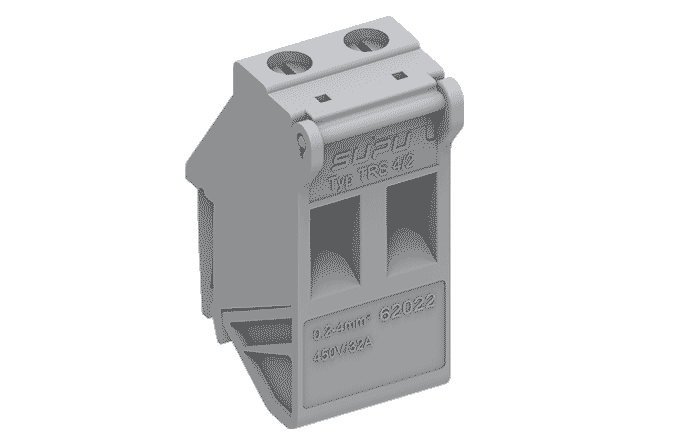

Transformer terminal
620222
Rated Voltage:600V
Rated Current:32A
Connection method:Screw connection
colour:orange
Color
Parameters

-
SUPU ID
620222 -

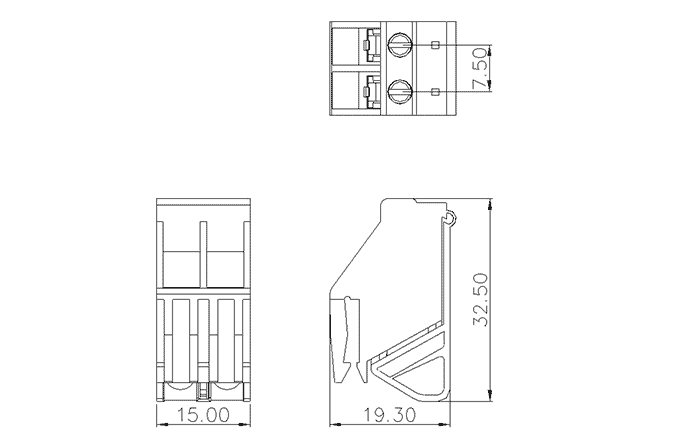

Pitch
– -
Number of levels
single layer -
Number of connections
2 -
Connection method
Screw connection -
Protection Level
IP20 -
Operating temperature range
-40~+105℃ -
Insulation material
PA66 -
Insulation material group
Ⅰ -
Contact material
Copper alloy -
Contact plating
Sn plated -
Color
Orange
Technical data

-
IEC Rated Current
32A -
IEC Rated Voltage
600V -
Overvoltage category
Ⅲ/Ⅲ/Ⅱ -
Degree of pollution
3 2 2 -
Rated impulse voltage
3KV – – -
UL Rated Current
20A 20A – -
UL Rated Voltage
300V 300V – -
Conductor cross section rigid
0.2-4mm² -
Conductor cross section flexible
0.2-4mm² -
Conductor cross section flexible,with furrule
0.2-4mm² -
Locking screw Specification
M3 -
Locking screw torque
0.6-0.8N.m -
Fixed Screw Specification
– -
Stripping length
8~9mm
Commercial data

-
Order No
620222
Authentication
