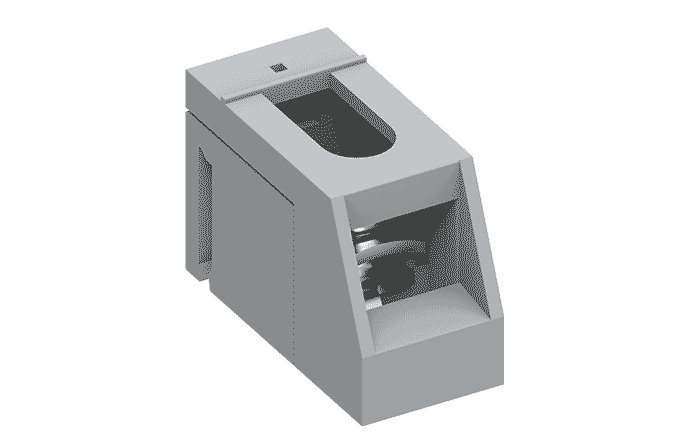

Transformer terminal
620112
Pitch:13mm
Rated Voltage：600V
Rated Current:32A
Connection method：Screw connection
colour：orange
Color
Parameters
-
SUPU ID
620112 -
Pitch
13 -
Number of levels
single layer -
Number of connections
1 -
Connection method
Screw connection -
Protection Level
IP20 -
Operating temperature range
-25℃～70℃ -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Tin
-
Color
Orange
Technical data
-
IEC Rated Current
32A -
IEC Rated Voltage
600V -
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
-
Degree of pollution
3 2 2
-
Rated impulse voltage
3KV – – -
UL Rated Current
20A 20A –
-
UL Rated Voltage
600V 600V –
-
Conductor cross section rigid
0.5-4mm² -
Conductor cross section flexible
0.5-4mm² -
Conductor cross section flexible,with furrule
0.5-4mm² -
Locking screw Specification
M4
-
Locking screw torque
1-1.2N.m
-
Fixed Screw Specification
–
-
Stripping length
8~9mm
Commercial data
-
Order No
620112
Authentication
