Product Image

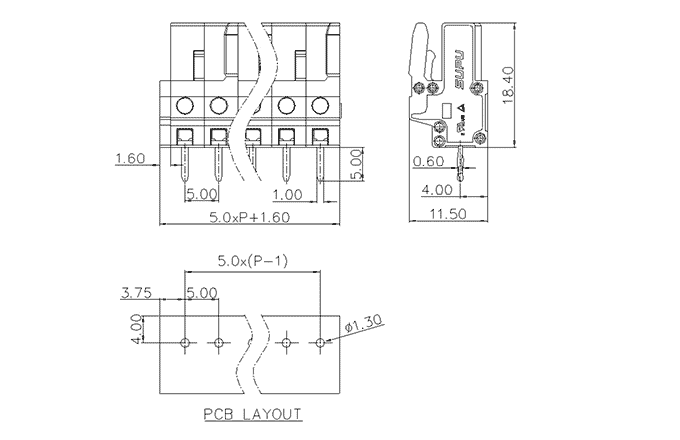

Product Size
Plug-in terminal-Socket
450268
Pitch:5.0mm
Rated Voltage：320V
Rated Current:12A
colour：grey
Color
Parameters
-
SUPU ID
450268 -
Pitch
5 -
Number of levels
Single layer -
Number of connections
18 -
Connection method
– -
Protection Level
IP20 -
Operating temperature range
-40~+105℃ -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Color
Grey
Technical data
-
IEC Rated Current
320V -
IEC Rated Voltage
12A -
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
-
Degree of pollution
3 2 2
-
Rated impulse voltage
4.0KV 4.0KV 4.0KV -
UL Rated Current
15A – 10A
-
UL Rated Voltage
300V – 300V
-
Use group
B/C/D
Commercial data
-
Order No
450268
Authentication
