SUPU Selection | SUPU SCWH Series Feed-Through Terminal Blocks: Efficient Pre-Assembly, Stable Transmission

SUPU’s feed-through terminal series offers a comprehensive range of products, categorized into spring-loaded and screw-clamping types based on connection technology. The entire series combines core advantages of safety, speed, and stability, while incorporating reliable anti-misinsertion protection. This provides cabinet manufacturers with efficient and convenient connectivity solutions.SUPU SCWH Series Feed-Through Terminal Blocks: Efficient Pre-Assembly, Stable Transmission

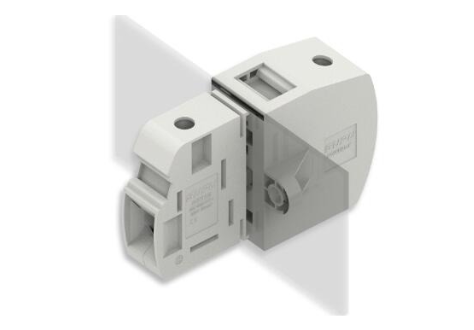

The SCWH series features a straight-through design with screw-clamping technology. Without requiring specialized tools, wires can easily pass through the panel and snap into place. The precise wire-locking mechanism ensures secure and reliable connections, regardless of the panel thickness.

Equipped with a touch-safe insulated housing, the terminal halves simply snap together for quick assembly. When multiple units are ganged, the design automatically compensates for wall thickness variations, enhancing electrical clearance and creepage distance.

For improved structural stability, the SCWH series supports flange-mounted installation on equipment exteriors. This reinforces the terminal block’s durability in various application environments.

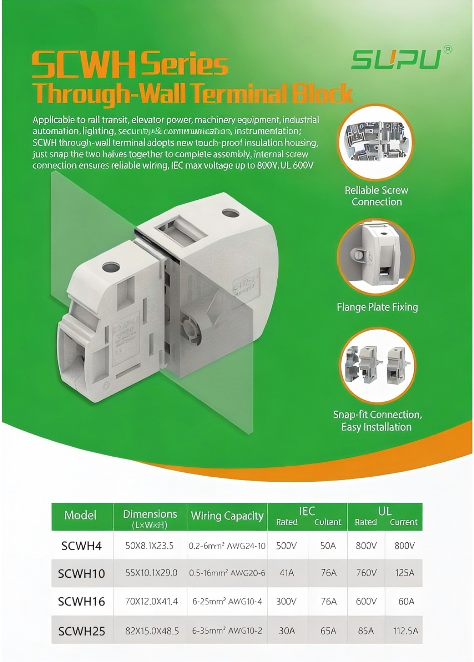

The SCWH series includes four standardized models, delivering excellent electrical performance. With a maximum IEC-rated voltage of 800V and a UL-rated voltage of 600V, the terminals accommodate wire cross-sections ranging from 0.2 mm² to 35 mm². This versatility meets diverse requirements across industrial equipment applications.

For more information about Supu Electronics and its MC Double-Layer High-Density Connectors, visit www.supucontact.com.
