Spring-cage terminal
TC10-2-PE
Connection method:Spring-cage connection,IEC Rated Voltage:1000V,Number of connections:2,Number of levels：1,Cross section:24-6AWG
Parameters
-
SUPU ID
TC10-2-PE -

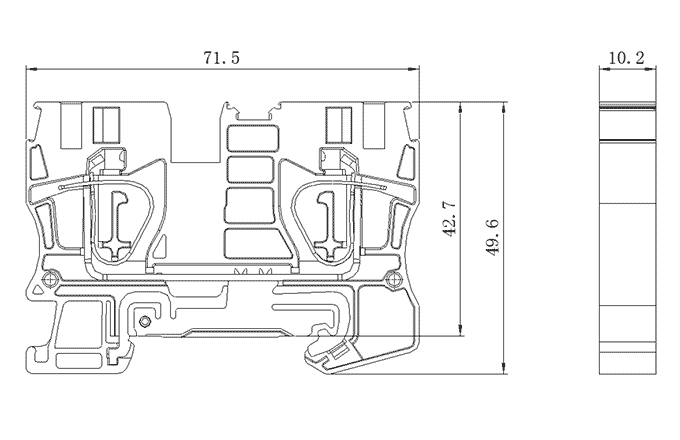

Width
10.2mm -
Number of levels
1 -
Number of connections
2 -
Connection method
Spring-cage connection -
Protection Level
IP20 -
Insulation material
PA66
-
Insulation material group
Ⅰ
-
Contact material
Copper alloy
-
Contact plating
Sn,Plated
-
Ambient temperature (operation)
-40℃～105℃
-
Ambient temperature (assembly)
-5℃～70℃
-
Ambient temperature (storage)
-25℃～60℃
-
Permissible humidity (storage/transport)
30%～70%
Commercial data
-
Order No
TC10-2-PE
