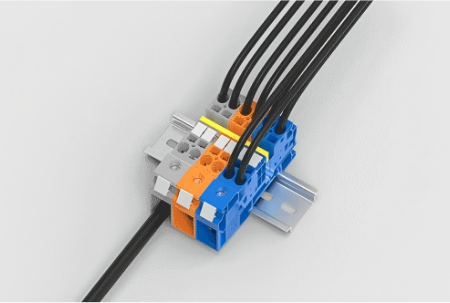

TCU35/4X6 Rail-Mounted Potential Distribution Terminal
Modular Wiring for Smarter, Safer and More Reliable Power Distribution
SUPU proudly introduces the new TCU35/4X6 Rail-Mounted Potential Distribution Terminal, a compact and efficient solution designed for modern industrial power distribution systems. By integrating high-current transmission, flexible expansion, and hybrid connection technology into one modular unit, the TCU35/4X6 simplifies panel wiring while improving system reliability and maintenance efficiency.
Key Advantages

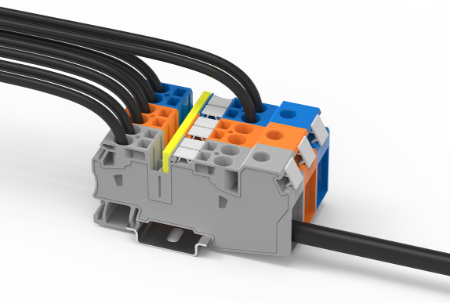

Hybrid Screw & Spring Connection
Combining the reliability of screw-clamp technology with the speed and convenience of spring connections, ensuring secure, vibration-resistant wiring while reducing installation time.

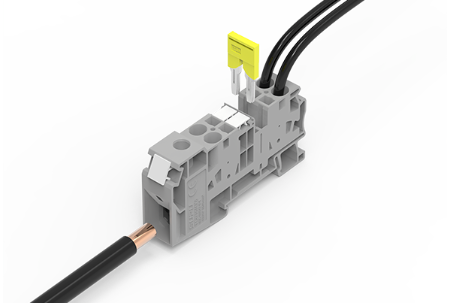

Efficient Potential Distribution
One high-capacity input distributes power efficiently to multiple outputs, reducing wiring complexity and improving cabinet organization.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Current | 125 A |
| Rated Voltage | 1000 V |
| Connection Technology | Screw / Spring Hybrid |
| Mounting Type | 35mm DIN Rail |
| Distribution Configuration | 1 × 35mm² Input → 4 × 6mm² Outputs |
Flexible Expansion & Compatibility

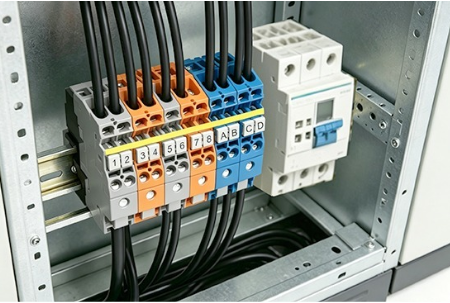

Designed for seamless integration into industrial control cabinets, the TCU35/4X6 supports a comprehensive range of accessories, including jumpers, markers, end plates, and bridging components. Using the TJA8.2 jumper, users can quickly establish connections with TPU series terminals, enabling efficient system expansion without custom wiring solutions.
Typical Applications
- Industrial Control Cabinets
- PLC & Automation Systems
- Power Distribution Units (PDU)
- Switchgear Manufacturing
- Energy Storage Systems (ESS)
- Solar Inverter Cabinets
- Industrial Machinery & Equipment
- Renewable Energy Installations
In Summary
The TCU35/4X6 Rail-Mounted Potential Distribution Terminal combines high-current capability, modular expansion, and hybrid connection technology into one compact solution. It helps engineers streamline wiring, improve reliability, and reduce installation costs in modern industrial electrical systems.
