Multiple Structures Available, Adaptable to Diverse Layouts
Provides various pin-out methods such as middle pin-out, rear pin-out, and wide pin-out, supporting horizontal/vertical wiring. Some models come with fixing holes and hexagonal nuts, which can be flexibly selected according to equipment layout without modifying the installation structure.
Stable Connection, Reliable Performance
Adopts barrier structure design, wire screws are fixed firmly. The 300V/25A electrical specification meets the needs of most industrial scenarios, compatible with 22-12AWG wires, ensuring stable transmission without hidden dangers.
Easy Installation, Worry-free Maintenance
The structure design is simplified, soldering installation is easy. In later maintenance, it is easy to check the wiring status, reducing operation and maintenance costs. The black PA66 shell is aging resistant and has strong flame retardant performance, with a long service life.
| Item | Parameter |
|---|---|
| Product Type | Solder Barrier Terminal Block |
| Rated Voltage / Current | 300V/25A |
| Pitch | 9.52mm |
| Wire Range | 22-12AWG |
| Pin-out Method | Middle pin-out, Rear pin-out, Wide pin-out, etc. |
| Mounting Options | With hex nut, With fixing hole (Optional) |
| Color | Black |
Application Scenarios

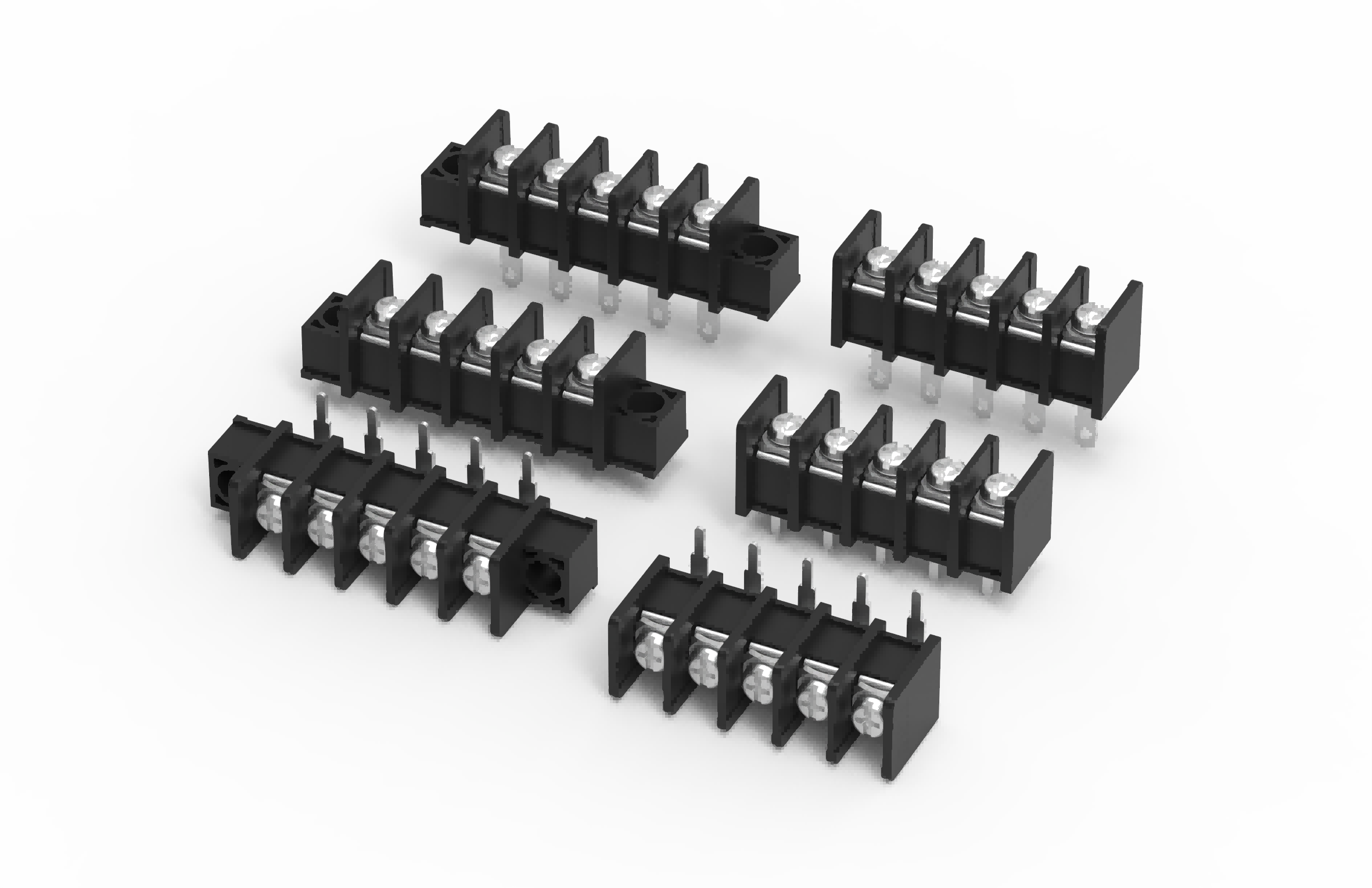

Supu TB series 9.52mm solder barrier terminal block, with the core of “multi-structure adaptation, stable and reliable, convenient and efficient”, is applied in industries such as industrial inverters and smart buildings, becoming a practical choice for industrial wiring scenarios, helping enterprises improve assembly efficiency and equipment stability.
